상세 정보
| 분리모드 | 역상 |
| 분리특징 | C8, C4 |
| Base | Silica gel |
| Particle Size | 3μm,5μm |
| Pore Size | 12nm |
| Carbon contents | 10%, 7% |
| Usable pH range | 2.0~7.5 |
| Max Pressure | 길이 50 ~ 150mm : 20MPa, 길이 250mm:25MPa, 내경10mm이상:10MPa |
| Usable temperature range | Max.50℃(권장:20~40℃) |
| End-Capping | YES |
| USP No. | L7, L26 |
| 충전제 대응 | NO |
YMC-Pack Pro C8 분석용 Columns
| Particle Size | Pore Size | Column Size (I.D. x Length) | Product Number |
| S-3 μm | 8 nm | 2.0 x 35 mm | OS12S03-H502WT |
| 2.0 x 50 mm | OS12S03-0502WT | ||
| 2.0 x 75 mm | OS12S03-L502WT | ||
| 2.0 x 100 mm | OS12S03-1002WT | ||
| 2.0 x 150 mm | OS12S03-1502WT | ||
| 3.0 x 50 mm | OS12S03-0503WT | ||
| 3.0 x 100 mm | OS12S03-1003WT | ||
| 3.0 x 150 mm | OS12S03-1503WT | ||
| 4.6 x 35 mm | OS12S03-H546WT | ||
| 4.6 x 50 mm | OS12S03-0546WT | ||
| 4.6 x 75 mm | OS12S03-L546WT | ||
| 4.6 x 100 mm | OS12S03-1004WT | ||
| 4.6 x 150 mm | OS12S03-1546WT | ||
| S-5 μm | 8 nm | 1.0 x 150 mm | OS12S05-1501WT |
| 1.0 x 250 mm | OS12S05-2501WT | ||
| 1.5 x 150 mm | OS12S05-15P5WT | ||
| 1.5 x 250 mm | OS12S05-25P5WT | ||
| 2.0 x 50 mm | OS12S05-0502WT | ||
| 2.0 x 75 mm | OS12S05-L502WT | ||
| 2.0 x 100 mm | OS12S05-1002WT | ||
| 2.0 x 150 mm | OS12S05-1502WT | ||
| 3.0 x 50 mm | OS12S05-0503WT | ||
| 3.0 x 150 mm | OS12S05-1503WT | ||
| 3.0 x 250 mm | OS12S05-2503WT | ||
| 4.6 x 50 mm | OS12S05-0546WT | ||
| 4.6 x 75 mm | OS12S05-L546WT | ||
| 4.6 x 100 mm | OS12S05-1046WT | ||
| 4.6 x 150 mm | OS12S05-1546WT | ||
| 4.6 x 250 mm | OS12S05-2546WT | ||
| 6.0 x 150 mm | OS12S05-1506WT |
YMC-Pack Pro C8 Semi Preparative Columns
| Particle Size | Pore Size | Column Size (I.D. x Length) | Product Number |
| S-5 μm | 12 nm | 20 x 250 mm | OS12S05-2520WT |
YMC-Pack Pro C8 Guard Cartridge Columns (5개입/pk)
| Particle Size | Pore Size | Column Size (I.D. x Lenght) | Product Number |
| S-3 μm | 12 nm | 2.1 x 10 mm | OS12S03-01Q1GC |
| 3.0 x 10 mm | OS12S03-0103GC | ||
| 4.0 x 10 mm | OS12S03-0104GC | ||
| S-5 μm | 12 nm | 2.1 x 10 mm | OS12S05-01Q1GC |
| 3.0 x 10 mm | OS12S05-0103GC | ||
| 4.0 x 10 mm | OS12S05-0104GC | ||
| 1.0 x 20 mm | OS12S05-0201GC | ||
| 2.1 x 20 mm | OS12S05-02Q1GC | ||
| 3.0 x 20 mm | OS12S05-0203GC | ||
| 4.0 x 20 mm | OS12S05-0204GC |
※처음 사용하실 경우, 길이에 맞는 Cartridge Holder를 구매 해 주세요.
Cartridge Holder
| 용도 | Product Number |
| 길이 10mm 용 | XPGCH-Q1 |
| 길이 20mm 용 | XPGCH-Q2 |
YMC-Pack Pro C4 분석용 Columns
| Particle size | Pore size | Column size (I.D. x length(mm) | Product Number |
| S-3 µm | 12 nm | 2.0 x 35 mm | BS12S03-H502WT |
| 20 x 50 mm | BS12S03-0502WT | ||
| 2.0 x 75 mm | BS12S03-L502WT | ||
| 2.0 x 100 mm | BS12S03-1002WT | ||
| 2.0 x 150 mm | BS12S03-1502WT | ||
| 3.0 x 50 mm | BS12S03-0503WT | ||
| 3.0 x 100 mm | BS12S03-1003WT | ||
| 3.0 x 150 mm | BS12S03-1503WT | ||
| 4.6 x 35 mm | BS12S03-H546WT | ||
| 4.6 x 50 mm | BS12S03-0546WT | ||
| 4.6 x 75 mm | BS12S03-L546WT | ||
| 4.6 x 100 mm | BS12S03-1004WT | ||
| 4.6 x 150 mm | BS12S03-1546WT | ||
| S-5 µm | 12 nm | 1.0 x 150 mm | BS12S05-1501WT |
| 1.0 x 250 mm | BS12S05-2501WT | ||
| 1.5 x 150 mm | BS12S05-15P5WT | ||
| 1.5 x 250 mm | BS12S05-25P5WT | ||
| 2.0 x 50 mm | BS12S05-0502WT | ||
| 2.0 x 75 mm | BS12S05-L502WT | ||
| 2.0 x 100 mm | BS12S05-1002WT | ||
| 2.0 x 150 mm | BS12S05-1502WT | ||
| 3.0 x 50 mm | BS12S05-0503WT | ||
| 3.0 x 150 mm | BS12S05-1503WT | ||
| 3.0 x 250 mm | BS12S05-2503WT | ||
| 4.6 x 50 mm | BS12S05-0546WT | ||
| 4.6 x 75 mm | BS12S05-L546WT | ||
| 4.6 x 100 mm | BS12S05-1046WT | ||
| 4.6 x 150 mm | BS12S05-1546WT | ||
| 4.6 x 250 mm | BS12S05-2546WT | ||
| 6.0 x 150 mm | BS12S05-1506WT |
YMC-Pack Pro C4 Semi Preparative Columns
| Particle Size | Pore Size | Colun Size I.D. x Length(mm) | Product Number |
| S-5 μm | 12 nm | 20 x 250 mm | BS12S05-2520WT |
YMC-Pack Pro C4 Guard Cartridge Columns (5개입/pk)
| Particle Size | Pore Size | Column size I.D. X length (mm) | Product Number |
| S-3 μm | 12 | 2.1 x 10 mm | BS12S03-01Q1GC |
| 3.0 x 10 mm | BS12S03-0103GC | ||
| 4.0 x 10 mm | BS12S03-0104GC | ||
| S-5 μm | 12 | 2.1 x 10 mm | BS12S05-01Q1GC |
| 3.0 x 10 mm | BS12S05-0103GC | ||
| 4.0 x 10 mm | BS12S05-0104GC | ||
| 1.0 x 20 mm | BS12S05-0201GC | ||
| 2.1 x 20 mm | BS12S05-02Q1GC | ||
| 3.0 x 20 mm | BS12S05-0203GC | ||
| 4.0 x 20 mm | BS12S05-0204GC |
※처음 사용하실 경우, Column내경에 맞는 Cartridge Holder를 구매 해 주세요.
Cartridge Holder
| 용도 | Product Number |
| 길이 10mm 용 | XPGCH-Q1 |
| 길이 20mm 용 | XPGCH-Q2 |
제품의 특징
1. 소수성이 비교적 큰 화합물 분석에 적합
2. 고도의 End-Capping처리
3. 염기성 화합물 분리에 적합
4. 2종류의 검사성적서 첨부
5. 금속 불순물이 적은 Silica 사용
6. 뛰어난 재현성
사양
|
1. Caffeine
2. Ethenzamide
3. Bromovalerylurea
4. Ibuprofen

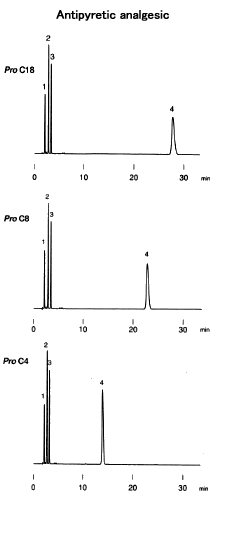

C8, C4의 Column을 이용하여, Caffeine, ethenzamid,
Bromovalerylurea의 분리는 그대로 Peak가 용출되며, 전체의 분석 시간 단축.

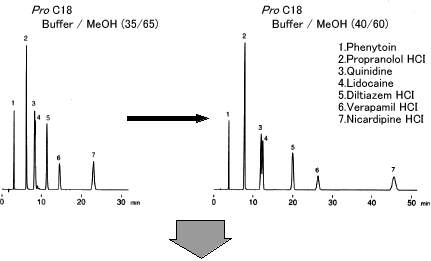

Pro C8, C4에 의한 분리 최적화
C18에서는 분리 최적화가 어려운 경우에도 C8, C4를 사용하여 효과적으로 분리 최적화 가능.
상세 정보
| 분리모드 | 역상 |
| 분리특징 | C8, C4 |
| Base | Silica gel |
| Particle Size | 3μm,5μm |
| Pore Size | 12nm |
| Carbon contents | 10%, 7% |
| Usable pH range | 2.0~7.5 |
| Max Pressure | 길이 50 ~ 150mm : 20MPa, 길이 250mm:25MPa,내경10mm이상:10MPa |
| Usable temperature range | Max.50℃(권장:20~40℃) |
| End-Capping | YES |
| USP No. | L7, L26 |
| 충전제 대응 | NO |
YMC-Pack Pro C8 분석용 Columns
| Particle Size | Pore Size | Column Size (I.D. x Length) | Product Number |
| S-3 μm | 8 nm | 2.0 x 35 mm | OS12S03-H502WT |
| 2.0 x 50 mm | OS12S03-0502WT | ||
| 2.0 x 75 mm | OS12S03-L502WT | ||
| 2.0 x 100 mm | OS12S03-1002WT | ||
| 2.0 x 150 mm | OS12S03-1502WT | ||
| 3.0 x 50 mm | OS12S03-0503WT | ||
| 3.0 x 100 mm | OS12S03-1003WT | ||
| 3.0 x 150 mm | OS12S03-1503WT | ||
| 4.6 x 35 mm | OS12S03-H546WT | ||
| 4.6 x 50 mm | OS12S03-0546WT | ||
| 4.6 x 75 mm | OS12S03-L546WT | ||
| 4.6 x 100 mm | OS12S03-1004WT | ||
| 4.6 x 150 mm | OS12S03-1546WT | ||
| S-5 μm | 8 nm | 1.0 x 150 mm | OS12S05-1501WT |
| 1.0 x 250 mm | OS12S05-2501WT | ||
| 1.5 x 150 mm | OS12S05-15P5WT | ||
| 1.5 x 250 mm | OS12S05-25P5WT | ||
| 2.0 x 50 mm | OS12S05-0502WT | ||
| 2.0 x 75 mm | OS12S05-L502WT | ||
| 2.0 x 100 mm | OS12S05-1002WT | ||
| 2.0 x 150 mm | OS12S05-1502WT | ||
| 3.0 x 50 mm | OS12S05-0503WT | ||
| 3.0 x 150 mm | OS12S05-1503WT | ||
| 3.0 x 250 mm | OS12S05-2503WT | ||
| 4.6 x 50 mm | OS12S05-0546WT | ||
| 4.6 x 75 mm | OS12S05-L546WT | ||
| 4.6 x 100 mm | OS12S05-1046WT | ||
| 4.6 x 150 mm | OS12S05-1546WT | ||
| 4.6 x 250 mm | OS12S05-2546WT | ||
| 6.0 x 150 mm | OS12S05-1506WT |
YMC-Pack Pro C8 Semi Preparative Columns
| Particle Size | Pore Size | Column Size (I.D. x Length) | Product Number |
| S-5 μm | 12 nm | 20 x 250 mm | OS12S05-2520WT |
YMC-Pack Pro C8 Guard Cartridge Columns (5개입/pk)
| Particle Size | Pore Size | Column Size (I.D. x Lenght) | Product Number |
| S-3 μm | 12 nm | 2.1 x 10 mm | OS12S03-01Q1GC |
| 3.0 x 10 mm | OS12S03-0103GC | ||
| 4.0 x 10 mm | OS12S03-0104GC | ||
| S-5 μm | 12 nm | 2.1 x 10 mm | OS12S05-01Q1GC |
| 3.0 x 10 mm | OS12S05-0103GC | ||
| 4.0 x 10 mm | OS12S05-0104GC | ||
| 1.0 x 20 mm | OS12S05-0201GC | ||
| 2.1 x 20 mm | OS12S05-02Q1GC | ||
| 3.0 x 20 mm | OS12S05-0203GC | ||
| 4.0 x 20 mm | OS12S05-0204GC |
※처음 사용하실 경우, 길이에 맞는 Cartridge Holder를 구매 해 주세요.
Cartridge Holder
| 용도 | Product Number |
| 길이 10mm 용 | XPGCH-Q1 |
| 길이 20mm 용 | XPGCH-Q2 |
YMC-Pack Pro C4 분석용 Columns
| Particle size | Pore size | Column size I.D. x length(mm) | Product Number |
| S-3 µm | 12 nm | 2.0 x 35 mm | BS12S03-H502WT |
| 20 x 50 mm | BS12S03-0502WT | ||
| 2.0 x 75 mm | BS12S03-L502WT | ||
| 2.0 x 100 mm | BS12S03-1002WT | ||
| 2.0 x 150 mm | BS12S03-1502WT | ||
| 3.0 x 50 mm | BS12S03-0503WT | ||
| 3.0 x 100 mm | BS12S03-1003WT | ||
| 3.0 x 150 mm | BS12S03-1503WT | ||
| 4.6 x 35 mm | BS12S03-H546WT | ||
| 4.6 x 50 mm | BS12S03-0546WT | ||
| 4.6 x 75 mm | BS12S03-L546WT | ||
| 4.6 x 100 mm | BS12S03-1004WT | ||
| 4.6 x 150 mm | BS12S03-1546WT | ||
| S-5 µm | 12 nm | 1.0 x 150 mm | BS12S05-1501WT |
| 1.0 x 250 mm | BS12S05-2501WT | ||
| 1.5 x 150 mm | BS12S05-15P5WT | ||
| 1.5 x 250 mm | BS12S05-25P5WT | ||
| 2.0 x 50 mm | BS12S05-0502WT | ||
| 2.0 x 75 mm | BS12S05-L502WT | ||
| 2.0 x 100 mm | BS12S05-1002WT | ||
| 2.0 x 150 mm | BS12S05-1502WT | ||
| 3.0 x 50 mm | BS12S05-0503WT | ||
| 3.0 x 150 mm | BS12S05-1503WT | ||
| 3.0 x 250 mm | BS12S05-2503WT | ||
| 4.6 x 50 mm | BS12S05-0546WT | ||
| 4.6 x 75 mm | BS12S05-L546WT | ||
| 4.6 x 100 mm | BS12S05-1046WT | ||
| 4.6 x 150 mm | BS12S05-1546WT | ||
| 4.6 x 250 mm | BS12S05-2546WT | ||
| 6.0 x 150 mm | BS12S05-1506WT |
YMC-Pack Pro C4 Semi Preparative Columns
| Particle Size | Pore Size | Colun Size I.D. x Length(mm) | Product Number |
| S-5 μm | 12 nm | 20 x 250 mm | BS12S05-2520WT |
YMC-Pack Pro C4 Guard Cartridge Columns (5개입/pk)
| Particle Size | Pore Size | Column size I.D. X length (mm) | Product Number |
| S-3 μm | 12 | 2.1 x 10 mm | BS12S03-01Q1GC |
| 3.0 x 10 mm | BS12S03-0103GC | ||
| 4.0 x 10 mm | BS12S03-0104GC | ||
| S-5 μm | 12 | 2.1 x 10 mm | BS12S05-01Q1GC |
| 3.0 x 10 mm | BS12S05-0103GC | ||
| 4.0 x 10 mm | BS12S05-0104GC | ||
| 1.0 x 20 mm | BS12S05-0201GC | ||
| 2.1 x 20 mm | BS12S05-02Q1GC | ||
| 3.0 x 20 mm | BS12S05-0203GC | ||
| 4.0 x 20 mm | BS12S05-0204GC |
※처음 사용하실 경우, Column내경에 맞는 Cartridge Holder를 구매 해 주세요.
Cartridge Holder
| 용도 | Product Number |
| 길이 10mm 용 | XPGCH-Q1 |
| 길이 20mm 용 | XPGCH-Q2 |
제품의 특징
1. 소수성이 비교적 큰 화합물 분석에 적합
2. 고도의 End-Capping처리
3. 염기성 화합물 분리에 적합
4. 2종류의 검사성적서 첨부
5. 금속 불순물이 적은 Silica 사용
6. 뛰어난 재현성
사양
|
1. Caffeine
2. Ethenzamide
3. Bromovalerylurea
4. Ibuprofen
C8, C4의 Column을 이용하여, Caffeine, ethenzamid, Bromovalerylurea의 분리는 그대로 Peak가 용출되며, 전체의 분석 시간 단축.
Pro C8, C4에 의한 분리 최적화
C18에서는 분리 최적화가 어려운 경우에도 C8, C4를 사용하여 효과적으로 분리 최적화 가능.
